ARCHITECTURAL PRODUCT SOLUTIONS

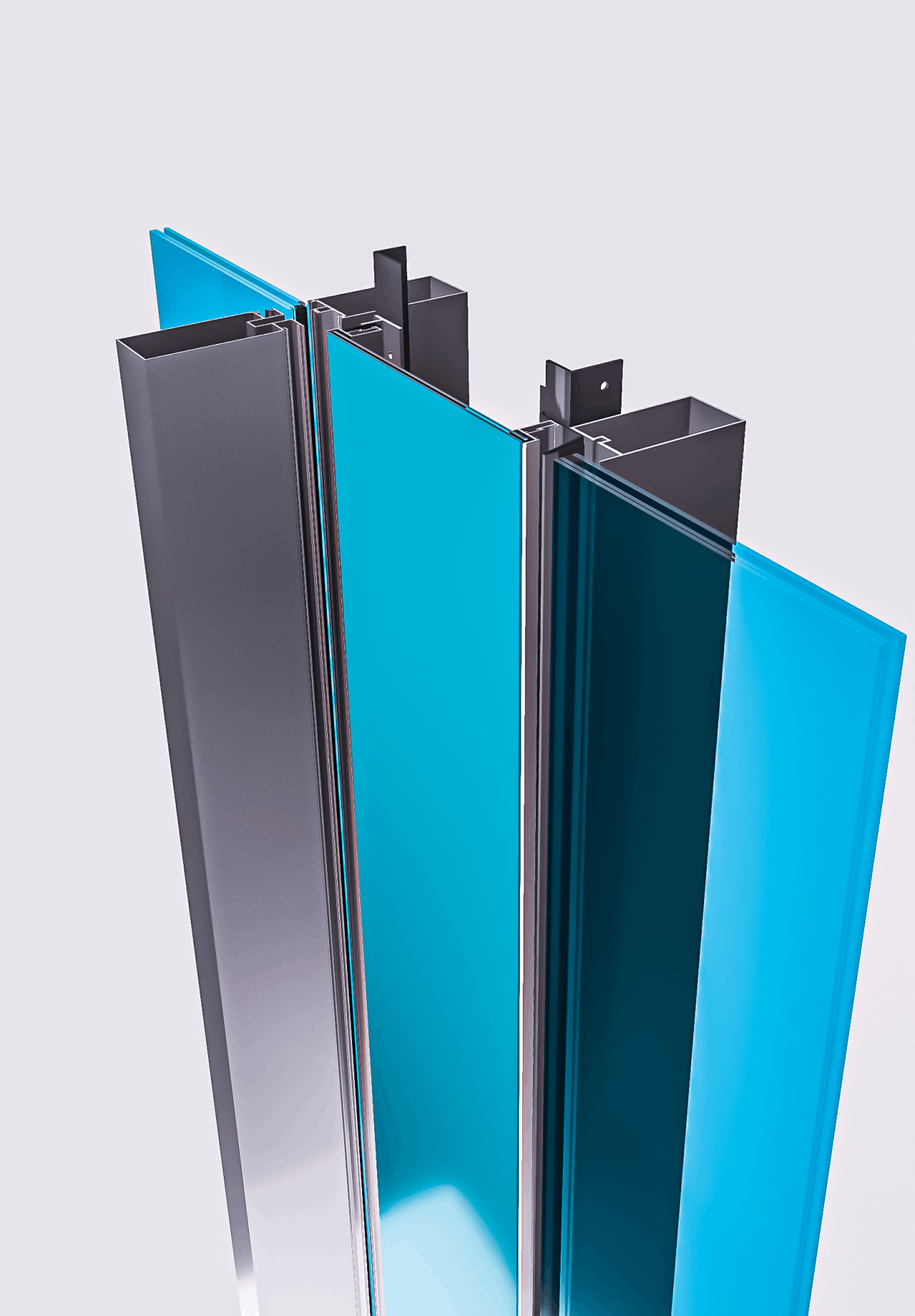

EXTERIOR WALL COVERS

SEE ALSO: BS-WXLS, BS-CWXLS
JOINT SIZE: 8-36″
MOVEMENT: ±50% to ±100% Expansion/Contraction; Lateral and Vertical Shear (Contact Factory)
FEATURES: Modular system, adaptable to accept infill materials or plate wrapped around surface; factory-provided plate configuration standard; Hinged door with safety cables permits up to seismic movement without damage; Counterweight and cable system safely returns cover back to nominal position after event; powerful magnets help cover snap back into alignment; Splicing-capable; Ships in lengths to match panel coursing, 6’ (1.8m) min, 10’ (3m) max; Comes standard with water barrier and seals in between panels; Same configuration for wall-to-wall and wall-to-corner, and hinge can be left- or right-handed; Not for horizontal use
PERFORMANCE: Seismic, thermal and wind movement ;
